Industrial Portable Analyzers
General Purpose |
Intrinsically Safe |
General Purpose:
|
 |
The only truly portable PPB analyzer available features the MS
version of the proprietary Pico-Ion oxygen sensor capable of precisely
measuring oxygen concentrations ranging from from 10 PPB to 1000 PPM
over a 24 month operating life with no periodic maintenance, a proven
electronics platform, and, a stainless steel bypass sample system that
enables the analyzer to come online at PPB levels in minutes.
Learn more ... |
|
|

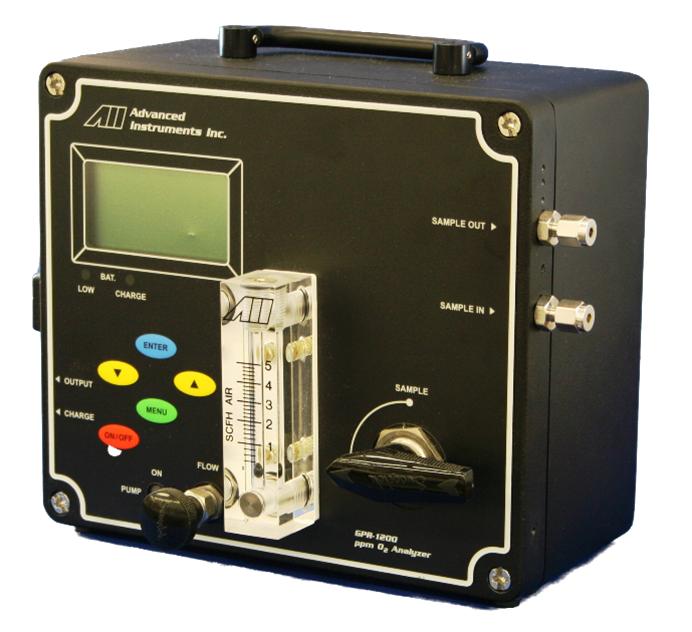

The analyzer that pays for itself in one month features an advanced
galvanic trace PPM oxygen sensor capable of precisely measuring oxygen
concentrations ranging from from 100 PPB to 1% over a 24 month operating
life, a proven electronics platform, an integral stainless steel bypass
sample system that enables the analyzer to come online at PPM levels in
minutes, and, a compact robust enclosure that stands up to the demands
of industrial field use. Learn
more ... |
 |

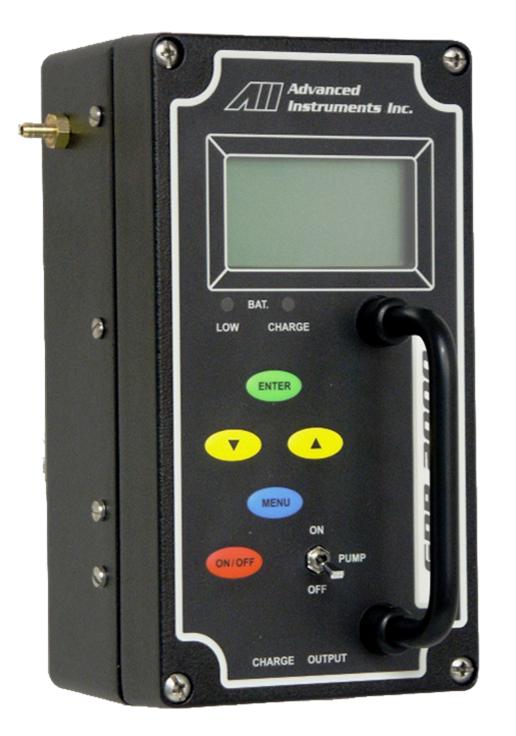

Features an advanced galvanic trace PPM oxygen sensor capable of
precisely measuring oxygen concentrations ranging from from 100 PPB to
1% over a 24 month operating life, a proven electronics platform,
stainless steel wetted parts and quick disconnect fittings, and, a
compact robust enclosure that stands up to the demands of industrial
field use. Learn more ... |
 |

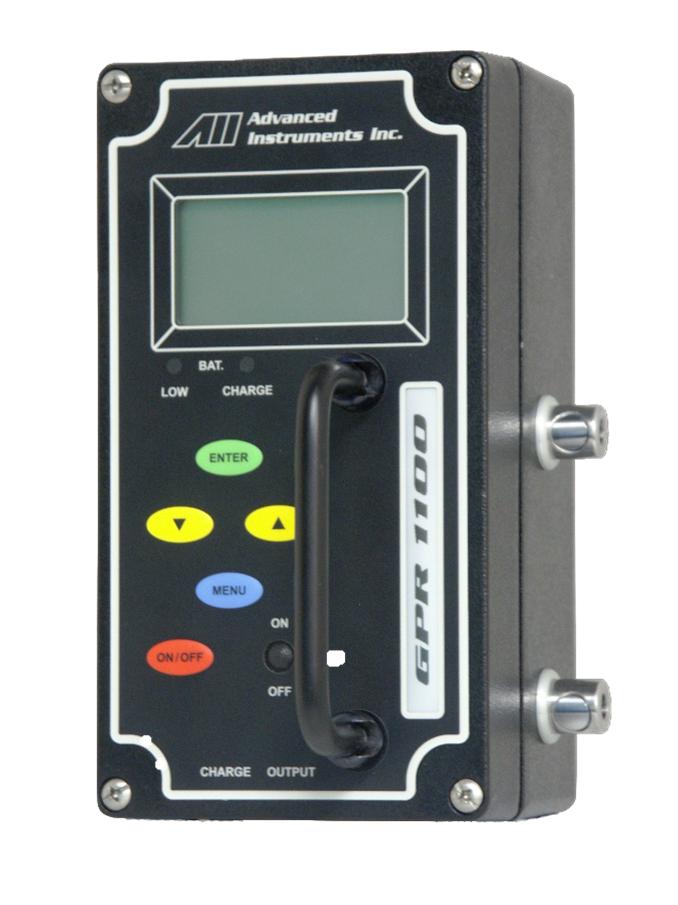

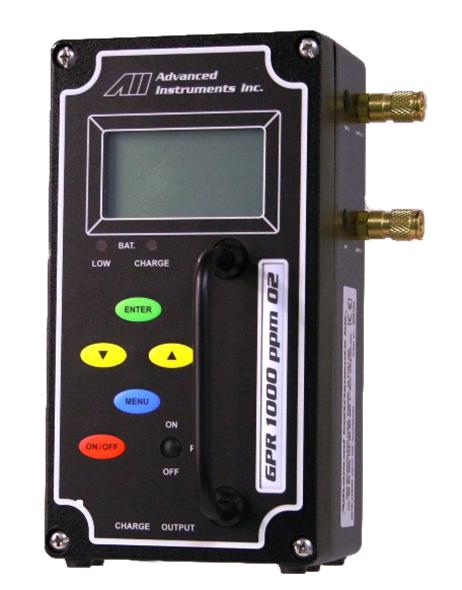

The most cost effective trace PPM analyzer available features an
advanced galvanic trace PPM oxygen sensor capable of precisely measuring
oxygen concentrations ranging from from 1 PPM to 1% over a 24 month
operating life, a proven electronics platform, quick disconnect
fittings, a compact robust enclosure that stands up to the demands of
industrial field use, and, a variety of optional equipment.
Learn more ... |
Back to Top |
 |
The most cost effective oxygen analyzer available features an
advanced galvanic oxygen sensor capable of measuring oxygen
concentrations ranging from 0.05% to 100% over a 36 month operating life
with no periodic maintenance required, a proven electronics platform, a
choice of an integral sensor or coiled cable external sensor, a compact
robust enclosure that stands up to the demands of industrial field use,
and, a variety of optional equipment.
Learn more ... |
 |

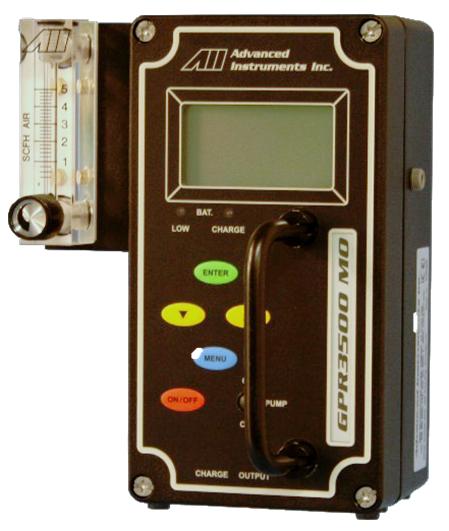

The only electrochemical portable oxygen purity analyzer on the
market features an innovative galvanic oxygen purity sensor whose
calibration is not affected by vibration and is capable of precisely
measuring oxygen concentrations of 100% oxygen continuously over a 24
month operating life, a proven electronics platform, and, a compact
robust enclosure that stands up to the demands of industrial field use.
Learn more ... |
 |

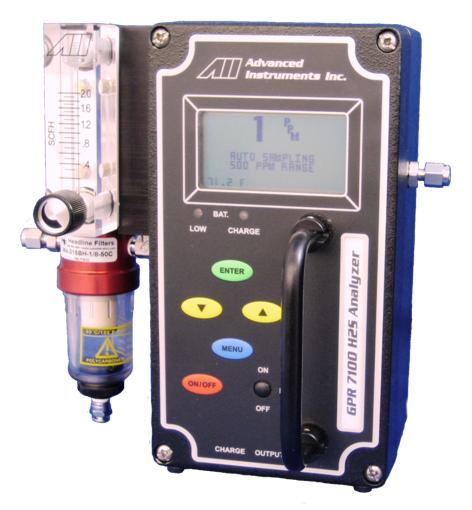

Features an advanced trace PPM hydrogen sulfide sensor capable of
precisely measuring hydrogen sulfide concentrations ranging from 1 PPM
to 2000 PPM over a 24 month operating life with no periodic maintenance
required, menu driven controls, a stainless steel sample that includes
flow control and coalescing filter to remove liquids, and, a compact
robust enclosure that stands up to the demands of industrial field use.
Learn more ... |
Back to Top |
  |

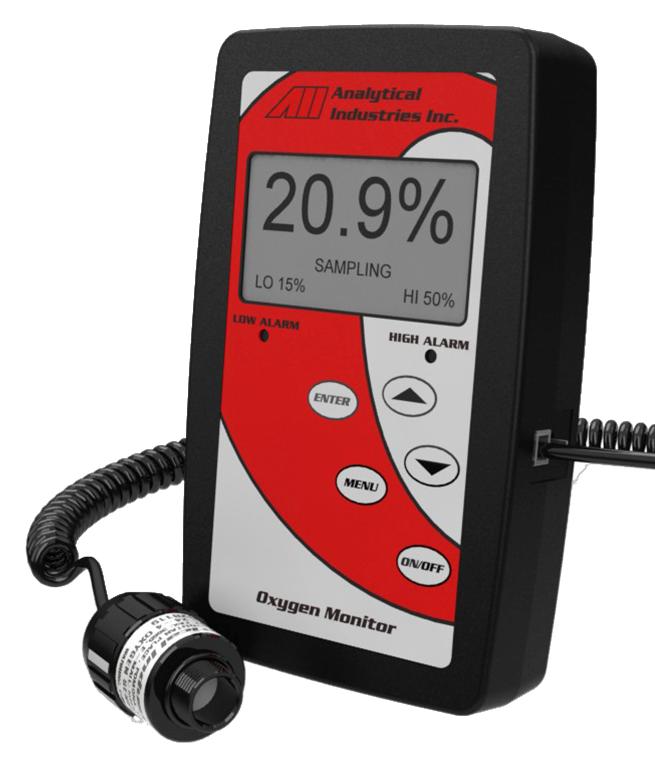

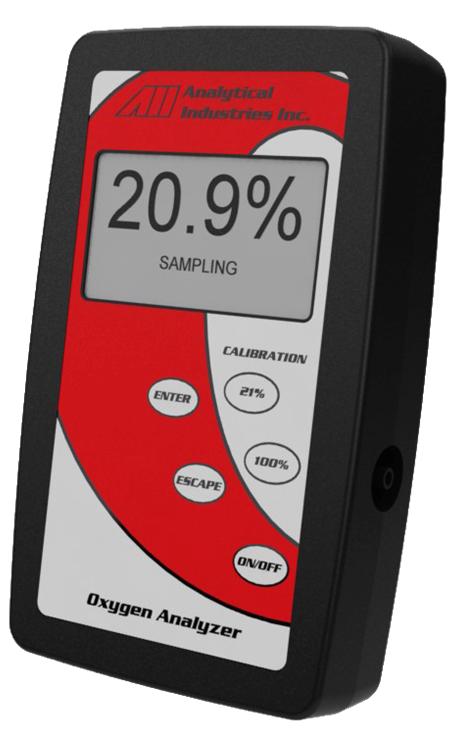

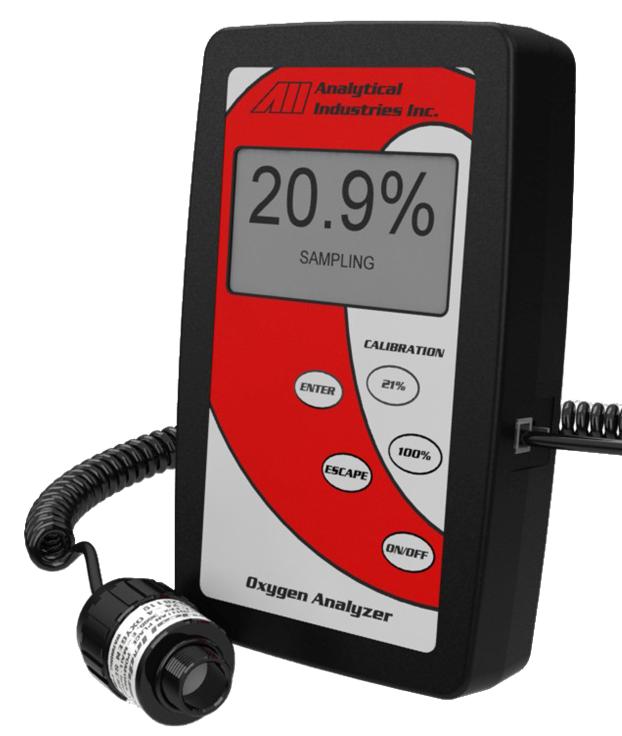

These cost effective oxygen analyzers feature an advanced galvanic
oxygen sensor capable of measuring oxygen concentrations ranging from
0.05% to 100% over a 60 month operating life, proven electronics with
touch pad controls, a choice of an integral sensor or coiled cable
external sensor, two types of mounting brackets, and, a variety of
optional equipment. Learn more
... |
  |

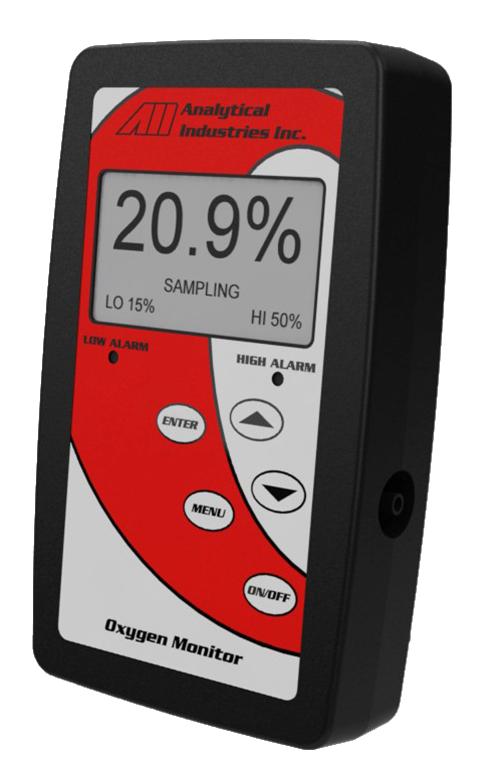

These cost effective oxygen analyzers feature an advanced galvanic
oxygen sensor capable of measuring oxygen concentrations ranging from
0.05% to 100% over a 60 month operating life, proven electronics with
menu driven controls that include two (2) field selectable alarm set
points, a choice of an integral sensor or coiled cable external sensor,
two types of mounting brackets, and, a variety of optional equipment.
Learn more ... |
 |

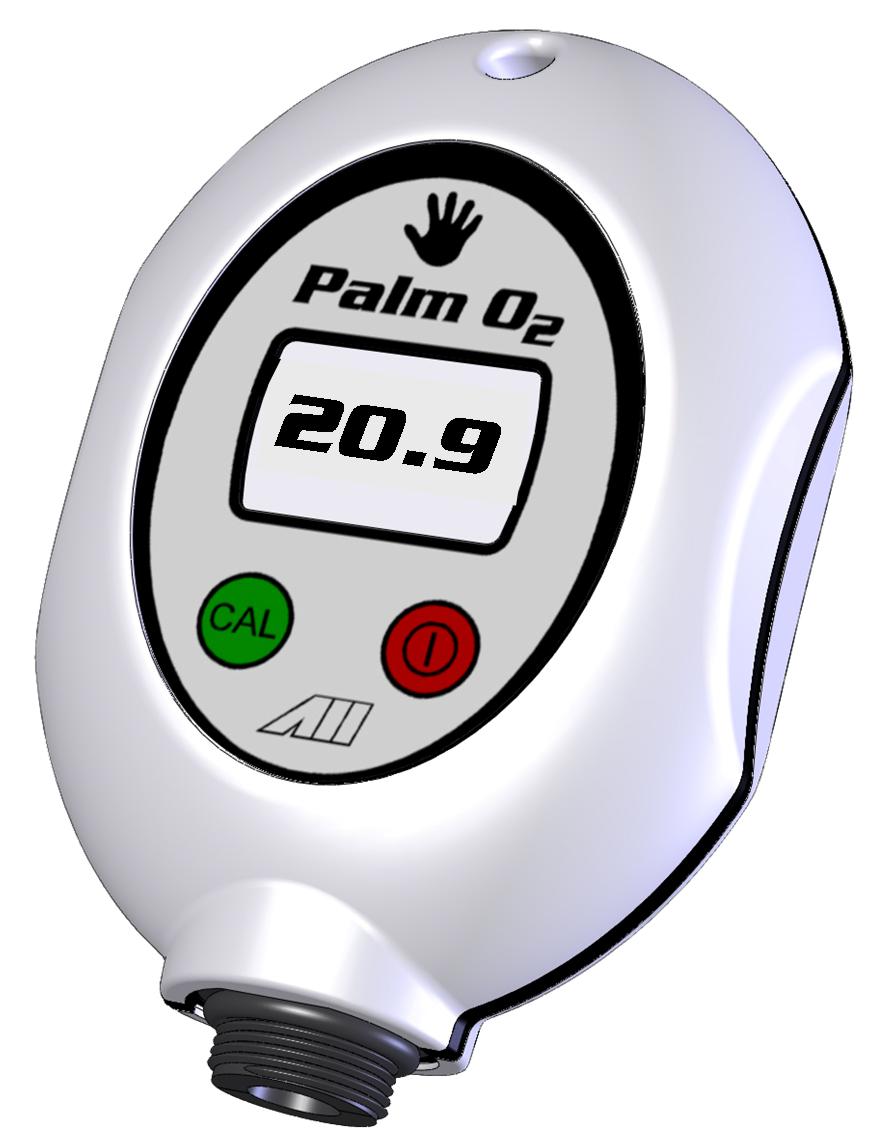

This palm size oxygen analyzer features an advanced galvanic oxygen
sensor that measures from 0.05% to 100% oxygen over a 32 month operating
life with no maintenance required. 13,000 hours of battery use and wide
variety of optional accessories make it an ideal cost effective choice
for checking O2 levels for personnel safety, lab experiments, confined
spaces, fire rescue air tanks and inerted atmospheres before welding.
Learn more ... |
Back to Top |
Intrinsically Safe:
|
|
|
Features certification to ATEX Directive 94/9/EC
(view all ATEX
certified products). The only truly portable PPB analyzer available.
Features the MS version of the proprietary Pico-Ion oxygen sensor
capable of precisely measuring oxygen concentrations ranging from from
10 PPB to 1000 PPM over a 24 month operating life with no periodic
maintenance, a proven electronics platform, and, a stainless steel
bypass sample system that enables the analyzer to come online at PPB
levels in minutes.. Learn
more ... |
|
|
Features certification to ATEX Directive 94/9/EC
(view all ATEX
certified products). The analyzer that pays for itself in one month
features an advanced galvanic trace PPM oxygen sensor capable of
precisely measuring oxygen concentrations ranging from from 100 PPB to
1% over a 24 month operating life, a proven electronics platform, and,
an integral stainless steel bypass sample system that enables the
analyzer to come online at PPM levels in minutes, and, a compact robust
enclosure that stands up to the demands of industrial field use.
Learn more ... |
|
|
Features certification to ATEX Directive 94/9/EC
(view all ATEX
certified products). Features an advanced galvanic trace PPM oxygen
sensor capable of precisely measuring oxygen concentrations ranging from
from 100 PPB to 1% over a 24 month operating life, a proven electronics
platform, stainless steel wetted parts and quick disconnect fittings,
and, a compact robust enclosure that stands up to the demands of
industrial field use. Learn
more ... |
|
|
Features certification to ATEX Directive 94/9/EC
(view all ATEX
certified products). The most cost effective trace PPM analyzer
available features an advanced galvanic trace PPM oxygen sensor capable
of precisely measuring oxygen concentrations ranging from from 1 PPM to
1% over a 24 month operating life, a proven electronics platform, quick
disconnect fittings, and, a compact robust enclosure that stands up to
the demands of industrial field use, and, a variety of optional
equipment. Learn more ... |
|
|
Features certification to ATEX Directive 94/9/EC
(view all ATEX
certified products). The most cost effective oxygen analyzer
available features an advanced galvanic oxygen sensor capable of
measuring oxygen concentrations ranging from 0.05% to 100% over a 36
month operating life with no periodic maintenance required, a proven
electronics platform, a choice of an integral sensor or coiled cable
external sensor, a compact robust enclosure that stands up to the
demands of industrial field use, and, a variety of optional equipment.
Learn more ... |
美国AII氧分析仪传感器XLT-12-123 美国AII氧分析仪传感器PSR-12-22 美国AII氧分析仪传感器PSR-12-24
美国AII氧分析仪传感器PSR-12-223 美国AII氧分析仪传感器XLT-11-15 美国AII氧分析仪传感器PSR-11-21
美国AII氧分析仪传感器PSR-11-213 美国AII氧分析仪传感器PSR-11-23 美国AII氧分析仪传感器PSR-11-233
美国AII氧分析仪传感器PSR-11-25 美国AII氧分析仪传感器PSR-11-77 美国AII氧分析仪传感器PSR-11-54 美国AII氧分析仪传感器PSR-11-52
美国AII氧分析仪传感器PSR-11-39
| 产品图片 |
产品名称/型号 |
产品简单介绍 |
|
|
美国AII氧分析仪传感器XLT-12-123
美国AII XLT-12-123
|
|
|
|
美国AII氧分析仪传感器PSR-12-22
美国AII PSR-12-22
|
|
|
|
美国AII氧分析仪传感器PSR-12-223
美国AII PSR-12-223
|
|
|
|
美国AII氧分析仪传感器PSR-12-24
美国AII PSR-12-24
|
|
|
|
美国AII氧分析仪传感器XLT-11-15
美国AII XLT-11-15
|
|
|
|
美国AII氧分析仪传感器PSR-11-21
美国AII PSR-11-21
|
|
|
|
美国AII氧分析仪传感器PSR-11-213
美国AII PSR-11-213
|
|
|
|
美国AII氧分析仪传感器PSR-11-23
美国AII PSR-11-23
|
|
|
|
美国AII氧分析仪传感器PSR-11-233
美国AII PSR-11-233
|
|
|
|
美国AII氧分析仪传感器PSR-11-25
美国AII PSR-11-25
|
|
|
|
美国AII氧分析仪传感器PSR-11-77
美国AII PSR-11-77
|
|
|
|
美国AII氧分析仪传感器PSR-11-54
美国AII PSR-11-54
|
|
|
|
美国AII氧分析仪传感器PSR-11-52
美国AII PSR-11-52
|
|
|
|
美国AII氧分析仪传感器PSR-11-39
美国AII PSR-11-39
|
|
美国AII氧气传感器,GPR氧燃料电池,PSR氧电极,XLT氧电池
-
类 别： 分析仪器 > 气体检测仪 气体传感器
-
名 称： 美国AII氧气传感器,GPR氧燃料电池,PSR氧电极,XLT氧电池
-
型 号：
GPR-12-2000MS,GPR-12-333,GPR-11-32-4,PSR-12-223
-
品 牌： 美国先进AII/ADV公司
-
参考价格： 书面报价
美国AII（ADV）公司的氧气传感器（氧气传感器、氧电极、氧电池、氧燃料电池）制造技术使得近几十年来的电化学传感器技术实现了革命性的突破， 其将微燃料电池氧传感器的灵敏度提高到了1ppb，寿命长达2-10年，响应时间以及从工艺波动中恢复时间大大缩短，使用温度拓宽到了-30度，稳定性大为提高从而延长了标定周期。另外，AII美国AII（ADV）公司还提供一系列高质量替代传感器，可发和市场上主要厂商的电化学氧传感器互换使用。和市场上主要的氧仪表相比，提供了最好的性能价格比。在绝大多数情况下，AII产品可以替代顺磁氧分析仪，而且实际表现更加优秀。这是因为和顺磁氧传感器相比，电化学传感器稳定性好，受温度、流量、压力的影响小，不受振动、安装角度等因素的影响（这对便携式分析仪而言尤为重要），对样气水份、尘等杂质含量的要求比较低，在传感器使用寿命周期内，灵敏度不因为样气中含有一定量的水份或尘而下降，而且对样气预处理系统要求低。AII/ADV公司所开发的氧传感器 （氧气传感器、氧电极、氧电池、氧燃料电池）对氧有极好的选择性，要可以测量低至小于1ppb、高到100%的氧。样气中的氧在敏感电极上发生化学反应，产生和浓度成比例的电流信号。所输出的电流信号在指定的所有测量内均为线性，并且在整个正常使用寿命周期内保持不变。其它竞争者所制造的传感器很难与之相比。
GPR-13-2000UHP氧气传感器、GPR-12-2000MS氧电极、GPR-12-333氧电池、GPR-11-32-4氧燃料电池、PSR-12-223氧电极、XLT-12-333、GPR-12-100-M、XLT-12-100-M、GPR-11-120-OP、GPR-11-120-RTS、GPR-11-120-4、GPR-11-60-4、GPR-11-75-F、GPR-11-60、XLT-11-24、XLT-11-32-4、XLT-11-32-RT、GPR-11-21-RT、A-2675氧燃料电池、OSV-31-1、OSV-42-1、PSR-12-223、XLT-12-223、PSR-11-15D、9212-0、PSR-11-21、GPR-11-917-J、PSR-11-37-4、PSR-11-75-KE氧电池、SAF-11-02-E、SAF-11-02-I氧电极、XLT-11-15氧气传感器，AII氧分析仪GPR-1200/GPR-1100GPR-1500传感器：GPR-12-333/GPR-12-100-M或酸性电池XL-12-333；AII氧分析仪传感器GPR-2000配GPR-11-21-RT/XLT24-RT；纯氧分析仪变送器GPR-2500MO配1-120-4氧分析仪传感器常量氧变送器GPR-2500配GPR-11-32-4或酸性电池XLT-11-32-4。
AII/ADV公司氧电极工作原理
AII/ADV公司所开发的传感器对氧有极好的选择性，要可以测量低至小于1ppb、高到100%的氧。样气中的氧在敏感电极上发生化学反应，产生和浓度成比例的电流信号。所输出的电流信号在指定的所有测量内均为线性，并且在整个正常使用寿命周期内保持不变。其它竞争者所制造的传感器很难与之相比。
创新性设计、特有的制造技术、电极和电解质材料等重要因素综合在一起优化了这些氧传感器的关键特性，使得近几十年来的电化学传感器技术实现了一次真正的飞跃。
0-100ppb满量程的Pico-lon “HP”
系列传感器
传感器技术主要的突破之一：灵敏度<1ppb、超快速恢复、极好的信噪比和稳定性。GPR和XLT微量氧传感器、常量氧传感器、氢中氧传感器、高纯度氧传感器、氧纯度传感器
0-1ppm满量程Pico-lon “MS” 系列传感器
由“HP”系列的传感器演变而来，强信号输出确保了室内应用无温控条件下工作时的长期稳定性。
0-10pp满量程的先进电化学燃料池传感器
GPR和XLT-12t系列传感器表现出低含量下更好的稳定性、更快的恢复（1小时内由空气恢复至10ppm）等特性，寿命长达18-24个月，GPR和XLT微量氧传感器、常量氧传感器、氢中氧传感器、高纯度氧传感器、氧纯度传感器
提供长达1年的质量保证。次低温（低至-30度）工作温度下可提供0-100ppm的低量程。
0-1%至0-100%满量程的先进电化学燃料电池传感器
GPR和XLT-11系列传感器具有比目前市场上的任何电化学传感器更好的稳定、长得多的寿命（在空气中长达10年）和更宽的工作温度范围（-40度～＋50度）。
90-100%满量程“OP”系列氧纯度传感器
电化学传感器技术的主要突破之一：克服了电化学传感器在该应用场合下寿命短、信号输出下降快的致命弱点。该系列传感器表现出了极好的稳定性、无漂移，在100%氧中寿命长达2年。GPR-12-333Oxygen
Sensor,GPR-12-333ppm Oxygen
Sensor,GPR-12-2000MSppb Oxygen
Sensor,GPR-11-12-4High Purity Oxygen Sensor
替代氧传感器
AII还设计出一系列高质量的替代传感器，用于直接替代Teledyne、MSA、Figaro 其它厂商的氧传感器。
传感器选型通用指导GPR-13-2000UHP氧气传感器、GPR-12-2000MS氧电极、GPR-12-333氧电池、GPR-11-32-4氧燃料电池、PSR-12-223氧电极、XLT-12-333、GPR-12-100-M、XLT-12-100-M、GPR-11-120-OP、GPR-11-120-RTS、GPR-11-120-4、GPR-11-32-4、GPR-11-60-4、GPR-11-75-F、GPR-11-60、XLT-11-24、XLT-11-32-4、XLT-11-32-RT、GPR-11-21-RT、A-2675氧燃料电池、 OSV-31-1、OSV-42-1、PSR-12-223、XLT-12-223、PSR-11-15D、9212-0、PSR-11-21、GPR-11-917-J、PSR-11-37-4、PSR-11-75-KE氧电池、SAF-11-02-E、SAF-11-02-I氧电极、XLT-11-15氧气传感器，AII氧分析仪GPR-1200/GPR-1100GPR-1500传感器：GPR-12-333/GPR-12-100-M或酸性电池XL-12-333；AII氧分析仪传感器GPR-2000配GPR-11-21-RT/XLT24-RT；纯氧分析仪变送器GPR-2500MO配1-120-4氧分析仪传感器常量氧变送器GPR-2500配GPR-11-32-4或酸性电池XLT-11-32-4。AII氧气传感器专门设计用于背景气体中含有0.5%－100%CO2和其它酸性气体的连续测量。合气体或间歇式测量CO2和其它酸性气体中的氧。间歇式测量定义为微量氧在15分钟测量后用空气或氮气吹扫15分钟。
|
