As distinct as your requirements as customized, so are our solutions. We offer you a unique tailored sensor and electronic solution for each specific application. Our experienced team is available for you to work jointly on a perfect solution.

SENSORE products offer innovative design, premium quality and robust design. Our products are used in a wide range of applications from medical equipment to household appliances as well as in measuring equipment to control exhaust gases or storage conditions. Our innovative products deliver safety, energy efficiency or simply a better life through sensor controlled cooking.

Our automated manufacturing processes and integrated testing are a guarantee for reliable quality. Compliance testing and extensive product life testing provide the necessary data to ensure that the product performance will not change over time.

We provide within our comprehensive program of services our modern testing equipment including REM/EDX analyses.

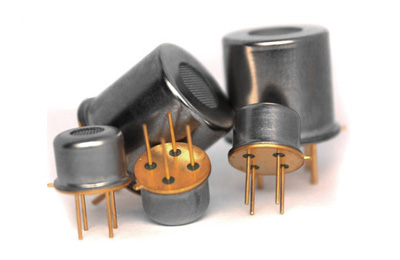

Depending on sensor type, SENSORE’s oxygen sensors enables oxygen measurement of between 10 ppm and 96% oxygen in gaseous media

• wide measurement range of 10 ppm up to 96% oxygen

• high accuracy

• almost linear characteristic for many sensor types

• low temperature dependence of sensor signal

• low cross-sensitivity to other gases

• long product life

• in many cases “Single point calibration” required only once

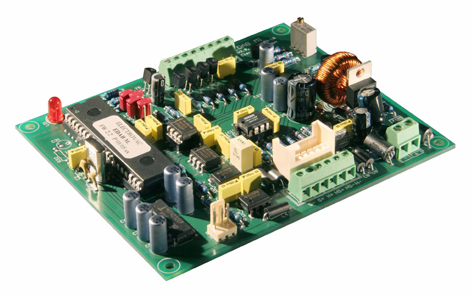

The driver and analyze unit EDAB M1 for oxygen sensors is to operate the sensor according to the specification and to evaluate the sensor signal. Main focus during development was the universal usability of the electronic board. Thus it is usable for all measuring ranges of available sensors without essential modifications.

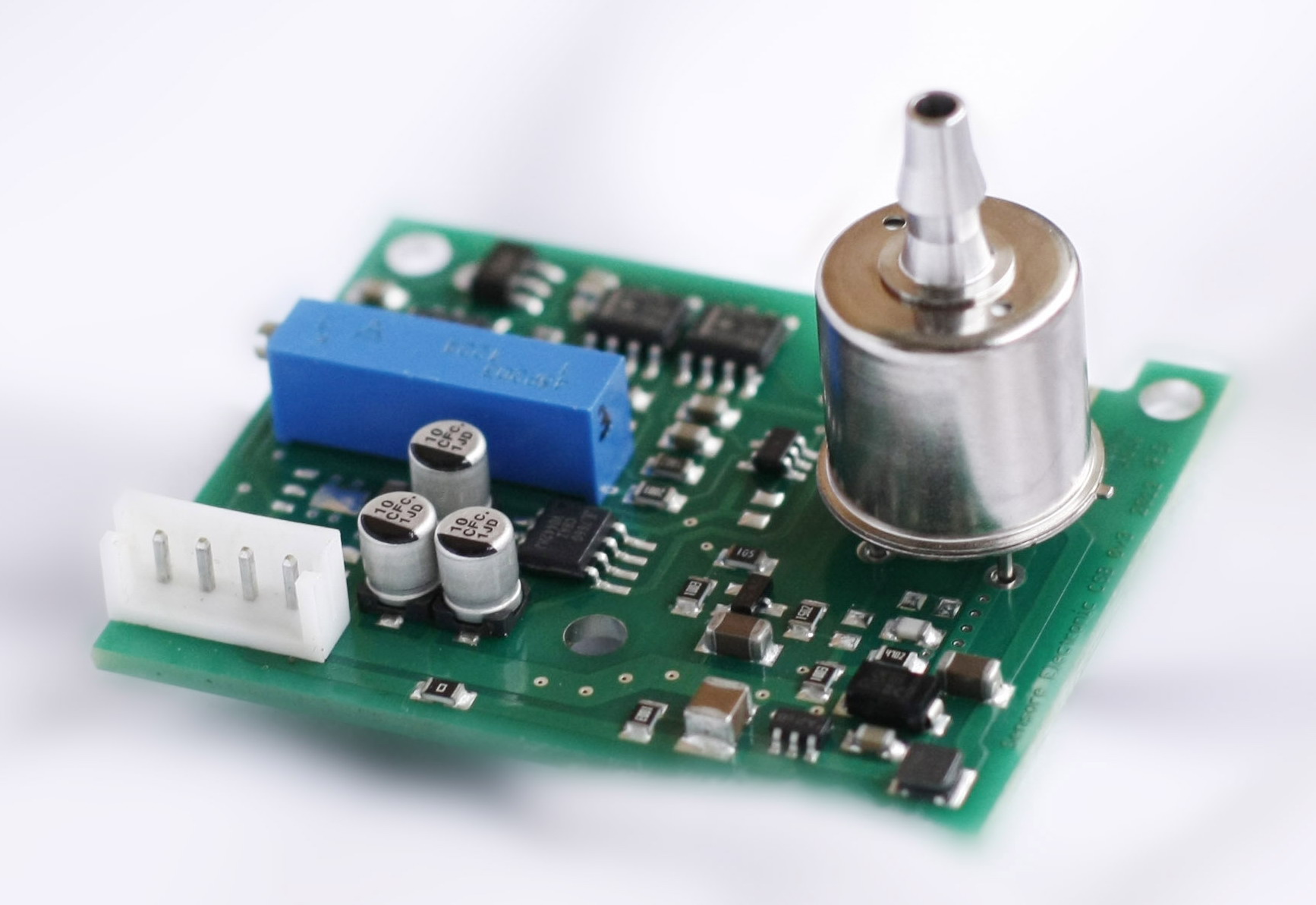

The Compact Sensor Board (CSB) for oxygen sensors allows an operation according to specification and provides the measured oxygen concentration via an analog voltage- or current-interface. Main focus during development was the design of a compact electronic for operation at typical ambient temperatures (0-40°C). The electronic is intended for integration in existing systems and can also be provided in higher volumes.

The Softwarekit SWKit-EDAB MX is used for visualisation of measuring data on a computer and for adjustment of parameters. One program modul is used for setting up different parameters as for example calibrating concentration, automatic threshold, output voltage interval etc. The second module is to visualize and store measured oxygen concentrations in a simple way onto the computer.

Operation manual

Data sheet

FAQ

Type configuration

Operation manual EDAB

Data sheet EDAB

Data sheet CSB1

Software description

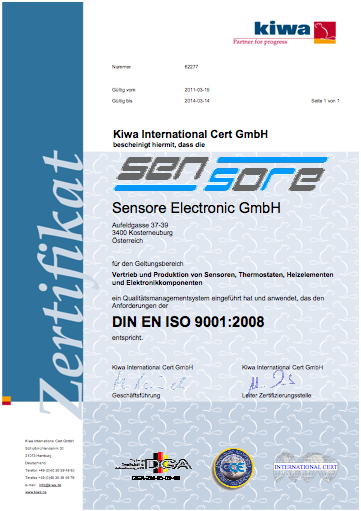

ISO 9001
