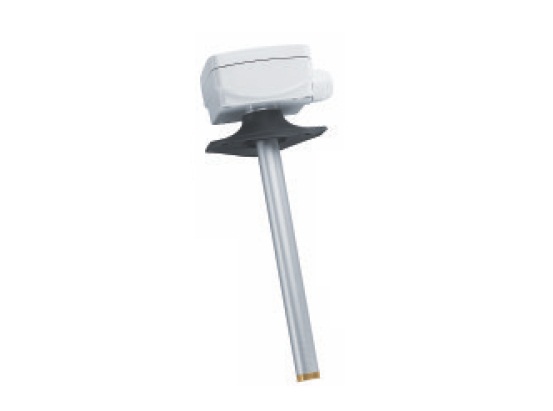

Ventilation Control Products Sweden AB

　
所属类别： 一氧化碳
产品型号： CMD 300C
资料下载： 点击下载该产品资料
发布日期： 2011-5-11
特性
电化学传感器元件
4-20MA 输出
超载保护
电压的范围(18-28 Vdc)
反极性保护
连续监测
低零点漂移
稳定
长寿命传感器
模块化插件技术技术数据

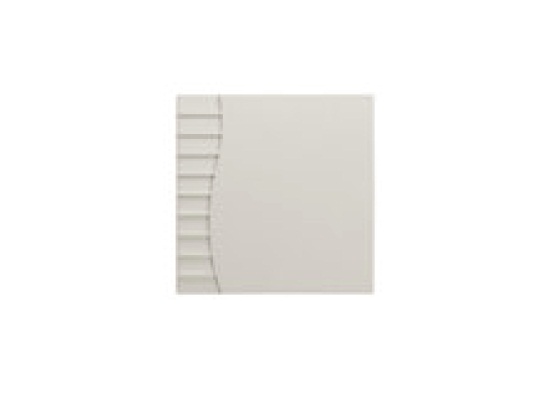

所属类别： 差压开关
产品型号： QDT
资料下载： 点击下载该产品资料
发布日期： 2011-5-11
性能
低成本的空气质量测量
基于混合气体传感器（VOC 传感器）测定空气质量
测试包括办公室，旅馆，会议室， 集会中心，学校，机场，公寓，商场，饭馆等的空气质量。
0-10伏直流电或4-20MA(可以选择)
也可以选择开关输出

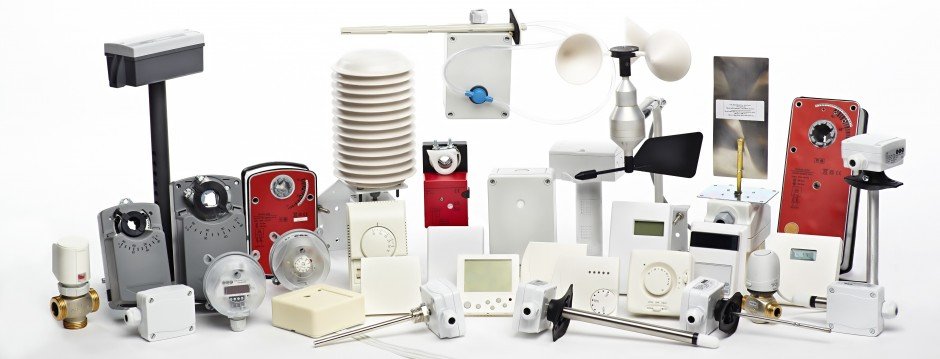

Ventilation Control Products (VCP) supply products for
HVAC Automation / Building Automation.

Our product range contains:
Sensors, Transmitters, Switches and Detectors for
Temperature, Humidity, Pressure, Air Quality (VOC), Carbon Dioxide (CO2), Carbon Monoxide (CO), Liquid, Smoke and Weather.

Including Zone Valves, Valve Actuators, Damper Actuators, Controllers and Thermostats.

VCP products are designed and used as field control products to be integrated with HVAC control systems such as:
　

  • BAS = Building Automation System

  • BMS = Building Management System

  • BEMS = Building Energy Management System

  • BAMS = Building Automation Management Systems

  • DDC = Direct Digital Controls

  • FMS = Facility Management Systems

  • FMIS = Facility Management Information Systems

  • HVAC controls = Heating, Ventilation and Air Conditioning controllers

HVAC Sensors and Transducers

Temperature Monitoring

  • Room, Duct, Immersion, Strap-on and Outdoor temperature sensors, transmitters/transducers.

  • Designed and used to sense temperature in in heating, ventilation and air conditioning systems.

  • Sensors with direct output
    Thermistors, Platina, Nickel
    NTC 10K, NTC 1.8K, NTC 20K, PT1000, PT100, NI1000, PTC
    sensing elements.

  • Transmitters with output 0-10 Vdc or 4-20 mA, with or without LCD display.

Humidity Monitoring

  • Room, Duct and Outdoor RH transmitters/transducers and hygrostats/humidistats.

  • The humidity and temperature transmitters measures the relative humidity and temperature, designed and used to sense temperature in in heating, ventilation and air conditioning systems.

  • Output 0-10 Vdc or 4-20 mA, with or without LCD display.

Pressure Monitoring

  • Pressure switches and pressure transmitters for static, over, differential pressure and vaccum.

  • Switches, where switching pressure can easily be adjusted on a scaled adjustment knob.

  • 20-200 Pa, 20-300 Pa, 30-400 Pa, 50-500 Pa, 200-1000 Pa, 500-2500 Pa, 1000-4000 Pa.

  • Transmitters/Transducers, output 0-10 Vdc or 4-20 mA, with or without LCD display.

  • 0-100 Pa, 0-250 Pa, 0-500 Pa, 0-1000 Pa, 0-2500 Pa, 0-5 kPa, 0-10 kPa,
    0-25 kPa, 0-50 kPa, 0-100 kPa and 0-250 kPa.

Flow Monitoring

Air Flow Paddle Switch intended to monitor air flow and non-agressive gaseous within a duct and provides a switched output on detection of either a specified air velocity or flow failure.

Air Quality (VOC) Monitoring

  • VOC = Volatile Organic Compounds.

  • Also named a Mixed Gas Sensor.

  • Used for better Indoor Climate and Energy Savings.

  • Room and Duct transmitters/transducers.

  • Output 0-10 Vdc or 4-20 mA, with or without LCD display.

Carbon Dioxide (CO2) Monitoring

  • Used for Field Controls in Green Building Applications.

  • Room and Duct transmitters/transducers.

  • Output 0-10 Vdc or 4-20 mA, with or without LCD display.

Carbon Monoxide (CO) Detection

  • CO detectors/transmitters/transducers to be used to detect toxic gas Carbon Monoxide

  • In applications such vehicle exhaust in parking structures,
    (e.g. underground garages), engine repair shops, tunnels, equipment rooms, ventilation systems etc.

  • Electrochemical sensor element.

  • Output 4-20 mA or 2-10 Vdc.

Liquid Detection

  • Liquid Warning Detectors and
    Alarm Band for Detection of Moisture and Water

  • Early detection means Early warning.

  • Avoid leak damages.

  • Detect moisture and liquid.

  • Use VCP´s detectors and alarm band to prevent or minimize water damages.

Smoke Detection

  • Duct Smoke Detectors for Ventilation Systems.

  • The primary purpose of duct smoke detection is to prevent injury, panic, and property damage by reducing the spread (recirculation) of smoke.

  • Detection of smoke is achieved by monitoring a carefully controlled infrared beam within a perforated tube which is inserted into the ductwork.

  • This method senses smoke directly within the duct, eliminating the problems associated with conventional detectors mounted in sampling boxes.

  • IR-detection (obscuration).

  • Probe lengths 300 mm and 600 mm.

Controllers

  • Zone Controllers with LCD display.

  • Full-featured CPU based controller designed for small sized cooling and heating air handling systems in residential and commercial facilities.

  • 230 Vac or 24 Vac fan speed control.

  • single or 3 speed (High-Med-Low).

  • 0-10 Vdc analogue and on/off outputs.

  • Cooling and heating.

Thermostats (Fan Coil)

  • Room thermostats designed for line voltage or low voltage control of valves, relays and fan motors

  • in fan coil units for commercial, industrial and residential installations.

  • Fan speed switch.

  • 3 speed (HIGH-MED-LOW).

  • 24 V and 220 V versions.

  • On/off,heat only or cool only, 2-pipe systems.

  • Heat-off-cool, 2-pipe systems.

  • Heat-off-cool, 4-pipe systems.

  • Setpoint knob.

  • High quality bi-metal sensor for close temperature differential.

Valves and Actuators

Designed and used for control of heat or cool water flow.

Fan coil valves (zone valves) together with fan coil actuator
used as control device.

Fan Coil Valves

  • 2-way, 3-way, 3-way with 4-ports.

  • DN10 (3/8”), DN15 (1/2”) and DN20 (¾”).

  • PN16.

  • Kvs 0.4, 0.6, 1.0, 1.6, 2.5, 3.5, 4.0 and 5.0.

  • Stroke 3.7 mm.

  • Normally Open Valves.

Fan Coil Actuators

  • Control Signal on/off or Pulse Width Modulating (PWM).

  • 24 Vac/dc and 220 Vac versions.

  • Normally Open and Normally Closed versions.

  • Stroke 4.0 mm

  • Adaptors to motorize other valve brands.

  • Actuator with control signal 0-10 Vdc also available.

Damper Actuators

  • To be used for positioning of dampers,

  • Spring Return Damper Actuators and Non-Spring Return Damper Actuators.

  • Torque 2, Nm, 4 Nm,  5Nm, 8 Nm, 10 Nm, 15 Nm, 16 Nm, 24 Nm and 32 Nm.

  • Control signals on/off, 3-point, 2-10 Vdc or 4-20 mA.

Weather

Weather Sensor Shields

  • Used in outdoor installations to protect relative humidity and temperature sensor from rain and sun radiation ensuring reliable measurement data.

  • Maximum protection from solar radiation and precipitation.

  • To be assemblied on wall or on mast.

Wind Speed and Wind Speed/Direction Sensors

  • The sensors accurately measures the wind speed and direction, providing output signals compatible with most DDC controllers.

  • Intended for applications where external weather conditions influence the building control strategy, such as for the automatic closing of windows in high wind conditions.

  • To be assemblied on wall or on mast.

Weather Station Products

  • Other weather station and meteorology products on request

  • rain detectors, aerodynamic rain gauges, sunshine detectors, lighting detectors, vane anemometers, barometric measurement etc
