Adtron S35FA Flashpak® Solid State Flash Disk

OVERVIEW

• Category: Solid State Flash Disk
• Form Factor: 3.5-inch
• Host Interface: SCSI-2
• Technology: Flash disk emulation of standard fixed disk or tape storage
• Capacity: 64 MBytes to 64 GBytes flash disk storage
• Sustained Transfer Rates: 6.0 MBytes/sec read, 5.2 MBytes/sec write (128 blocks)

FLASH DISK DESCRIPTION

The Adtron S35FA Flashpak® 3.5-inch solid state flash drive provides the same storage functions as hard disk drives, plus the enhanced operating reliability of long life MTBF and rugged durability. The industry standard SCSI interface simplifies the integration of flash drive storage memory into any computing platform and operating environment.

The Adtron S35FA Flashpak flash disk emulates industry standard fixed disk and tape storage products with operating characteristics familiar to system designers. Designed for heavy duty operation, Adtron S35FA Flashpak solid state flash disks perform under conditions of extended temperatures, high shock and vibration and rapid temperature gradients. Extensive capacity configurability provides a range of solutions to meet the needs of virtually every application.

No system modifications are required to replace a SCSI hard disk drive in an existing embedded application making it easy to upgrade the reliability of the computing platform to all solid state flash disk performance.

For more information on the Flashpak S35FA flash solid state disk, contact Adtron

SOLID STATE DISK RELIABILITY

Prediction Method	MTBF*
MIL-HDBK-217F	250,000 hours
Telcordia	1,400,000 hours (ground fixed, uncontrolled)
Telcordia	2,900,000 hours (ground fixed, controlled)

^{*Tested with 1GB capacity at 30°C}

FLASH DISK FEATURES AND BENEFITS

FEATURE	BENEFIT
Proven industry standards coupled with Adtron technology	Standard SCSI interface delivers unparalleled operating system compatibility
Tape and disk emulation	Meets industry standard magnetic storage systems with the integration of flash disk memory
No system modifications required for replacements of SCSI hard disks	Easily replace rotating hard disk drives with proven reliability solid state flash disks drives
Tested to MIL-STD-810F specifications	Meets the needs of defense and aerospace applications and platforms

FLASH DISK SPECIFICATIONS

SPECIFICATION	S35FA FLASH DISK
Hardware	Host computer with SCSI interface
Software	BIOS and O/S with SCSI support
Interface and connector	SCSI-2 50-pin, 0.1" pin spacing 4-pin power, 0.156" pin spacing
Data transfer rate	Sustained Read: 6.0 MB/sec (128 blocks) Sustained Write: 5.2 MB/sec (128 blocks)
Capacities	64 MBytes to 64 GBytes
Power requirements	Voltage = 5V ± 5% @ 1.2A (typ)
Dimensions	64 MB to 28 GB: 101.5mm [3.995"]W x 146.1mm [5.750"]D x 15.2mm [.600"]H 40 GB to 64 GB: 101.5mm [3.995"]W x 146.1mm [5.750"]D x 17.2mm [.608"]H
Operating temperature	Commercial (C): 0 to 70°C Industrial (I): -40 to 85°C
Standard Warranty	3 Years

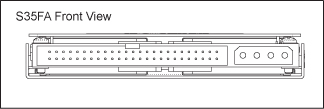

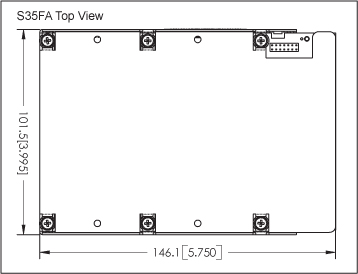

FLASH DISK DRAWINGS

Drawings are not to scale.
