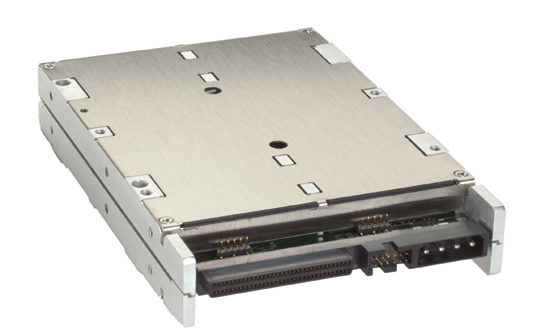

Adtron S35FB Flashpak® Solid State Flash Disk

OVERVIEW

• Category: Solid State Flash Disk
• Form Factor: 3.5-inch
• Host Interface: SCSI
• Technology: Adtron ArrayPro™ Performance Engine
• Capacity: 1 GByte to 128 GBytes flash disk storage
• Sustained Transfer Rates: 30 MBytes/sec read and write

DESCRIPTION

The Adtron S35FB Flashpak® SCSI flash disk is a 3.5-inch solid state disk that provides high capacity non-volatile storage at significantly greater random access speeds than a comparable 3.5-inch SCSI hard disk drive. With enhanced operating reliability, extended mean time before failure (MTBF), and rugged durability, the Adtron S35FB Flashpak disk excels in mission critical applications where the value of lost data is high.

The Adtron S35FB flash disk uses Adtron ArrayPro technology to deliver exceptional sustained read/write performances and capacities to meet your demanding application needs. The S35FB solid state disk emulates industry standard fixed disk and tape storage products with operating characteristics familiar to system designers. Designed for heavy duty operation, Adtron S35FB Flashpak flash disks perform under conditions of extended temperatures, high shock and vibration, and rapid temperature gradients. Extensive capacity configurability provides a range of solutions to meet the needs of virtually any application.

The industry standard Ultra Wide SCSI interface simplifies the integration of flash storage memory in any compatible computing platform and operating environment. The Adtron S35FB Flashpak is available with either a 68-pin unitized connector, or the 80-pin Single Connector Attachment (SCA-2) connector for direct backplane attachment.

No system modifications are required to replace a SCSI hard disk drive in an existing embedded application making it easy to upgrade the reliability of the computing platform to all solid state performance.

For more information on the S35FB Flashpak flash solid state disk, contact Adtron

SOLID STATE DISK RELIABILITY

Prediction Method	MTBF*
MIL-HDBK-217F	250,000 hours
Telcordia	1,400,000 hours (ground fixed, uncontrolled)
Telcordia	2,900,000 hours (ground fixed, controlled)

^{*Tested with 1GB capacity at 30°C}

FEATURES AND BENEFITS

FEATURE	BENEFIT
Adtron ArrayPro technology with full flash disk operations using 3.5-inch IDE disk drives	Parallel array processing provides unmatched flash disk performance
Proven industry standards coupled with Adtron technology	Standard SCSI interface delivers unparalleled operating system compatibility
No system modifications required for replacements of SCSI hard disks	Easily replace rotating hard disk drives with proven reliability solid state flash technology
Ultra Wide SCSI interface	Ability to run application operations in LVD or SE modes

FLASH DISK SPECIFICATIONS

SPECIFICATION	S35FB FLASH DISK
Hardware	Host computer with SCSI interface
Software	BIOS and O/S with SCSI support
Interface and connector	Ultra Wide SCSI LVD or SE 68-pin signal, 0.050" pin spacing, 4-pin power, 0.156" pin spacing or, 80-pin SCA-2 connector with signal and power
Data transfer rate	Sustained Read: 30 MB/sec (128 blocks) Sustained Write: 30 MB/sec (128 blocks)
Capacities	1 GBytes to 128 GBytes
Power requirements	Voltage = 5V ± 5% @ 2.0A (typ)
Dimensions	101.6mm [4.00"]W x 145.6mm [5.734"]D x 25.4mm [1.00"]H
Operating temperature	Commercial (C): 0 to 70°C Industrial (I): -40 to 85°C
Standard Warranty	3 Years
