Set Top Box

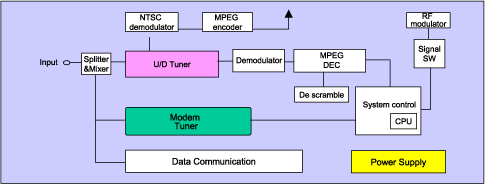

System Block Diagram


Major Promotion Products
Block Semiconductor Recommendation Remarks
System
Control 		CPU SH4 series SH7750/7751
Power Supply Shunt Regulater HA17431VLP
Comparator HA17393A
Common Zener Diode HZC6.2/6.8,HZM6.2ZWA
HZC3.0 etc		 Surge Absorption
SW Diode HSC119,HSM2838C etc
Built in resistance TRS BRT series(MPAK,CMPAK,TO92)
Small Signal TRS 2SA1052,2SC2462,2SC4265 etc
Uni Logic LV2G04AUS,ALVC1G04VS
OP Amp HA17358A
UP/Down
Tunner 		ATT Pin Diode HVB14S or HVB187YP
Tuning Varicap Diode HVC202B
U Converter Schottky Barrier Diode HSC88 Detector & Mixer
Wide band
amplifier		 High Frequency TRS 2SC5631
OSC buffer 2SC5555
OSC 2SC5757
1st IF 2SC5594
2nd IF 2SC5772
Modem
Tuner 		ATT PIN Diode HVB14S or HVB187YP
Band switch SW Diode HSC277
UHF tuning Varicap Diiode HVC202B
VHF tuning HVC300B,HVC306B
HVC363B
Wide band
amplifier		 High Frequency TRS 2SC5773 or 2SC5631
IF AMP 2SC5772
UHF RF BB503M or BB504M
VHF RF BB304M or BB305M
