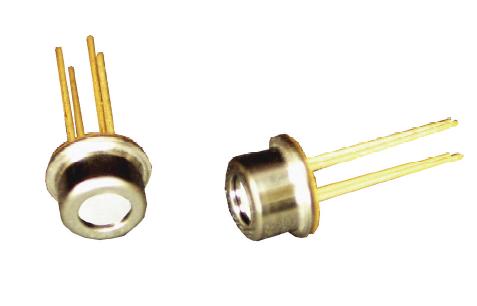

ZTP-015 Thermometrics红外线传感器

ZTP-015 Thermometrics IR Sensor

这个热电堆传感器用于非接触式表面温度测量。ZTP-015机型由双热电元件、平面红外线滤镜、一个温度补偿热敏电阻和一个密封TO-41（小型）封装组成。

特色
应用

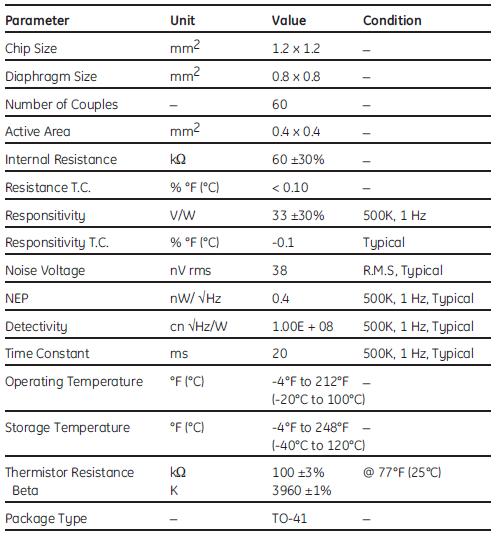

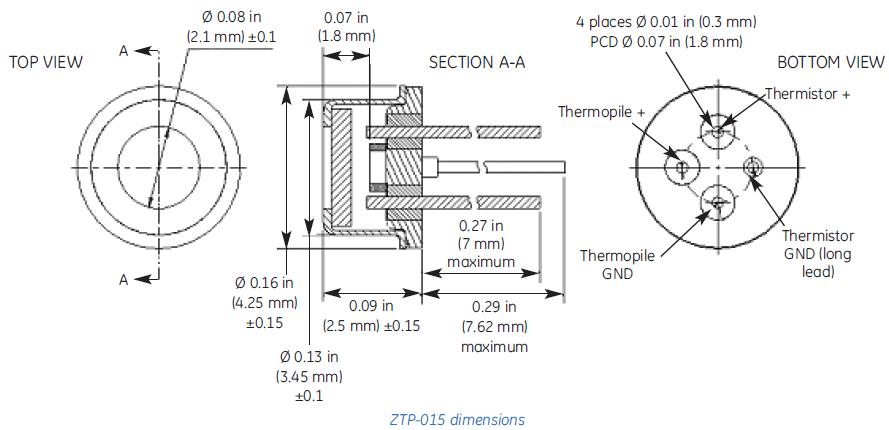

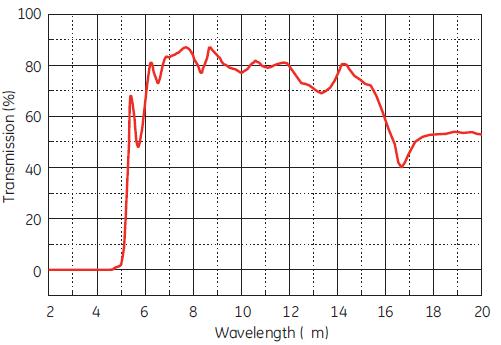

规格
下载

特色

超小尺寸传感器（TO-41封装）
用于补偿的内置环境温度（热敏电阻）传感器
高灵敏度
快速响应时间

下载

说明	English
Temperature resistance curves
Thermopile Application Note
ZTP-015 Thermometrics IR Sensor Brochure

ZTP-101T - Thermopile IR Sensor

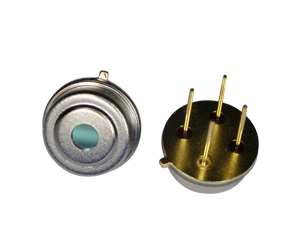

main-ZTP-101T

This thermopile sensor is used for non-contact surface temperature measuring. The ZTP -101T model consists of thermo-elements, flat IR filter, a thermistor for temperature compensation and a hermetically-sealed small-size package. There is also a variety of filters available to maximize performance in specific application.

Features

Non-contact measurement
Wider surface area measurement
Small-size sensor package
Included ambient temperature - (thermistor) sensor for compensation
High sensitivity
Fast response time
Low cost

Applications

Patient monitoring
Ear & Tympanic thermometers
Occupancy detection
HVAC
Appliance

Specifications

Thermopile Chip

Parameter	Limit Min	Limit Typ	Limit Max	Units	Conditions
Chip Size		3.0 X 3.0		mm2
Diaphragm Size		1.5 x 1.5		mm2
Active Area		0.51 x 0.51		mm2
Internal Resistance	140	200	260	kΩ	25°C
Resistance T.C			0.10	%/°C
Responsivity	77	110	143	V/W	500K, 1 Hz
Responsivity T.C		-0.11		%/°C
Noise Voltage		62		nV rms	R.M.S., 25°C
NEP		0.60		nW/Hz½	500K, 1 Hz
Detectivity		9.00 E07		cmHz½/W	500K, 1 Hz
Time Constant		22		ms

Download

说明	English
Thermopile Application Note
ZTP-101T IR Sensor Brochure

ZTP-115 - Thermopile IR Sensor

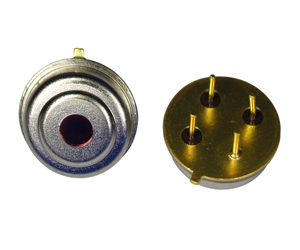

main-ZTP-115

This thermopile sensor is used for non-contact surface temperature measuring. The ZTP-115 model consists of thermo-elements, flat IR filter, a thermistor for temperature compensation and a hermetically-sealed small-size package. There is also a variety of filters available to maximize performance in specific applications.

Features

Non-contact measurement
Wider surface area measurement
Small-size sensor package
Included ambient temperature - (thermistor) sensor for compensation
High sensitivity
Fast response time
Low cost
RoHS compliant

Applications

Patient monitoring
Ear & Tympanic thermometers
Occupancy detection
HVAC
Appliance

Specifications

Thermopile Chip

Parameter	Limit Min	Limit Typ	Limit Max	Units	Conditions
Chip Size		1.8 x 1.8		mm2
Diaphragm Size		1.0 x 1.0		mm2
Active Area		0.5 x 0.5		mm2
Internal Resistance	35	50	65	kΩ	25°C
Resistance T.C			0.15	%/°C
Responsivity	42	60	78	V/W	500K, 1 Hz
Responsivity T.C		-0.10		%/°C
Noise Voltage		30		nV rms	R.M.S., 25°C
NEP		0.50		nW/Hz½	500K, 1 Hz
Detectivity		1.00 E08		cmHz½/W	500K, 1 Hz
Time Constant		20		ms

Download

说明	English
Thermopile Application Note
ZTP-115 IR Sensor Brochure

ZTP-135 - Thermopile IR Sensor

main-ZTP-115

This thermopile sensor is used for non-contact surface temperature measuring. The ZTP-135 model consists of thermo-elements, flat IR filter, a thermistor for temperature compensation and a hermetically-sealed small-size package. There is also a variety of filters available to maximize performance in specific applications.

Features

Non-contact measurement
Wider surface area measurement
Small-size sensor package
Included ambient temperature - (thermistor) sensor for compensation
High sensitivity
Fast response time
Low cost

Applications

Patient monitoring
Ear & Tympanic thermometers
Occupancy detection
HVAC
Appliance

Specifications

Thermopile Chip

Parameter	Limit Min	Limit Typ	Limit Max	Units	Conditions
Chip Size		1.8 x 1.8		mm2
Diaphragm Size		1.4 x 1.4		mm2
Active Area		0.7 x 0.7		mm2
Internal Resistance	42	60	78	kΩ	25°C
Resistance T.C			0.12	%/°C
Responsivity	42	60	78	V/W	500K, 1 Hz
Responsivity T.C		-0.10		%/°C
Noise Voltage		32		nV rms	R.M.S., 25°C
NEP		0.53		nW/Hz½	500K, 1 Hz
Detectivity		1.30 E08		cmHz½/W	500K, 1 Hz
Time Constant		25		ms

Download

说明	English
Thermopile Application Note
ZTP-135 IR Sensor Brochure

ZTP-135BS - Thermopile IR Sensor

ZTP-135SR - IR Sensor

This thermopile sensor is used for non-contact surface temperature measuring. The ZTP-135BS model consists of thermo-elements, flat IR filter, a thermistor for temperature compensation in a hermetically-sealed TO-46(18) package. There is also a variety of filters available to help maximize performance in specific applications.

Features

Small-size sensor (TO-46 package)
Included ambient temperature (thermistor) sensor for compensation
Fast response time
Low cost
High sensitivity

Applications

Industrial IR thermometer
Ear thermometers
Non-contact thermometers

Specifications

Thermopile Chip

Parameter	Limit Min	Limit Typ	Limit Max	Units	Conditions
Chip Size		1.8 x 1.8		mm2
Diaphragm Size		1.4 x 1.4		mm2
Active Area		0.7 x 0.7		mm2
Internal Resistance	42	60	78	kΩ	25°C
Resistance T.C			0.12	%/°C
Responsivity	38	54	70	V/W	500K, 1 Hz
Responsivity T.C		-0.03		%/°C
Noise Voltage		32		nV rms	R.M.S., 25°C
NEP		0.59		nW/Hz½	500K, 1 Hz
Detectivity		1.18 E08		cmHz½/W	500K, 1 Hz
Time Constant		25		ms

Download

说明	English
Thermopile Application Note
ZTP-135BS IR Sensor Brochure

ZTP-135H - Thermopile IR Sensor

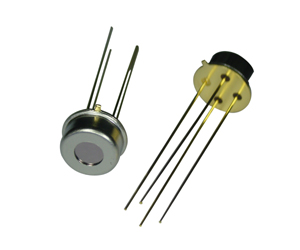

main-ZTP-135L

This thermopile sensor is used for non-contact surface temperature measuring. The ZTP-135H model consists of thermo-elements, flat IR filter, a thermistor for temperature compensation and a hermetically-sealed small-size package. There is also a variety of filters available to maximize performance in specific applications.

Features

Non-contact measurement
Wider surface area measurement
Small-size sensor package
Included ambient temperature - (thermistor) sensor for compensation
High sensitivity
Fast response time
Low cost

Applications

Patient monitoring
Ear & Tympanic thermometers
Occupancy detection
HVAC
Appliance

Specifications

Thermopile Chip

Parameter	Limit Min	Limit Typ	Limit Max	Units	Conditions
Chip Size		1.8 x 1.8		mm2
Diaphragm Size		1.4 x 1.4		mm2
Active Area		0.7 x 0.7		mm2
Internal Resistance	42	60	78	kΩ	25°C
Resistance T.C			0.12	%/°C
Responsivity	42	58	78	V/W	500K, 1 Hz
Responsivity T.C		-0.10		%/°C
Noise Voltage		32		nV rms	R.M.S., 25°C
NEP		0.55		nW/Hz½	500K, 1 Hz
Detectivity		1.27 E08		cmHz½/W	500K, 1 Hz
Time Constant		25		ms

Download

说明	English
Thermopile Application Note
ZTP-135H IR Sensor Brochure

ZTP-135L - Thermopile IR Sensor

main-ZTP-135L

This thermopile sensor is used for non-contact surface temperature measuring. The ZTP-135L model consists of thermo-elements, flat IR filter, a thermistor for temperature compensation and a hermetically-sealed small-size package. There is also a variety of filters available to maximize performance in specific applications.

Features

Non-contact measurement
Wider surface area measurement
Small-size sensor package
Included ambient temperature - (thermistor) sensor for compensation
High sensitivity
Fast response time
Low cost

Applications

Patient monitoring
Ear & Tympanic thermometers
Occupancy detection
HVAC
Appliance

Specifications

Thermopile Chip

Parameter	Limit Min	Limit Typ	Limit Max	Units	Conditions
Chip Size		1.8 x 1.8		mm2
Diaphragm Size		1.4 x 1.4		mm2
Active Area		0.7 x 0.7		mm2
Internal Resistance	42	60	78	kΩ	25°C
Resistance T.C			0.12	%/°C
Responsivity	42	58	78	V/W	500K, 1 Hz
Responsivity T.C		-0.10		%/°C
Noise Voltage		32		nV rms	R.M.S., 25°C
NEP		0.55		nW/Hz½	500K, 1 Hz
Detectivity		1.27 E08		cmHz½/W	500K, 1 Hz
Time Constant		25		ms

Download

说明	English
Thermopile Application Note
ZTP-135L IR Sensor Brochure

ZTP-135SR - 红外线传感器

ZTP-135SR - IR Sensor

这个热电堆传感器用于非接触式表面温度测量。ZTP-135SR机型由双热电元件、平面红外线滤镜、一个用于密封TO-46（18）封装温度补偿的热敏电阻组成。还有各种滤镜能在具体的应用下实现性能最大化。

特色

小型传感器（TO-46封装）
用于补偿的内置环境温度（热敏电阻）传感器
高灵敏度
快速响应时间
低成本

应用

耳温计
非接触式温度计

规格

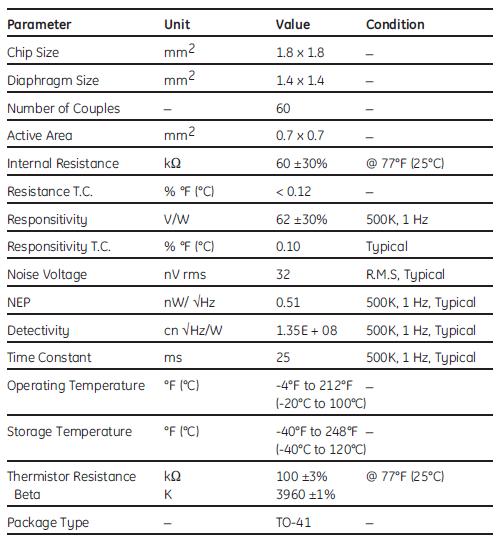

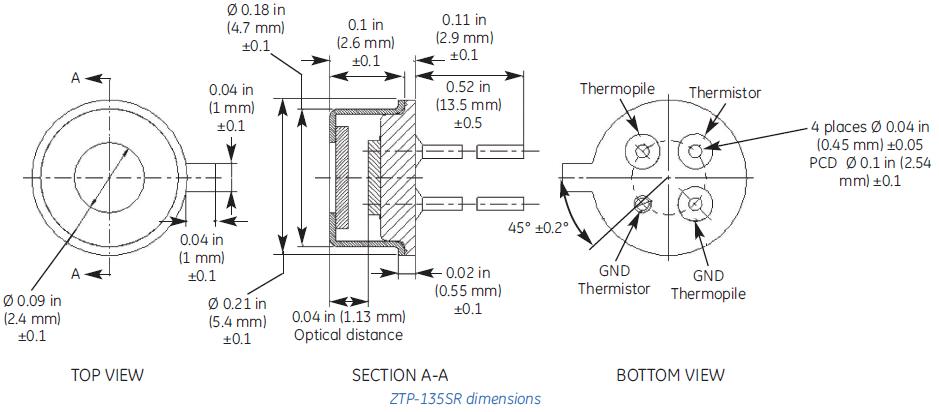

ztp-135sr-1

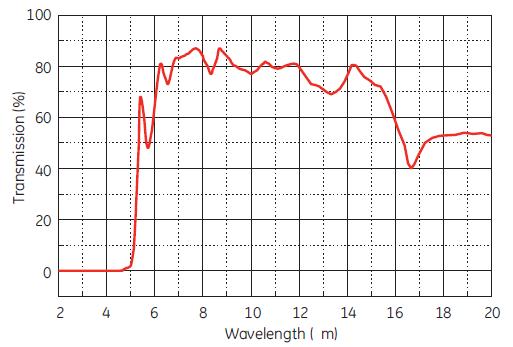

ztp-135sr-2

ztp-135sr-3

下载

说明	English
Temperature resistance curves
Thermopile Application Note
ZTP-135SR - IR Sensor Brochure

ZTP-315 - Thermopile IR Sensor

main-ZTP-135L

The ZTP-315 thermopile IR sensor is used for noncontact surface temperature monitoring. The ZTP-315 model consists of thermoelements, a flat IR filter, a thermistor for temperature compensation and a hermetically-sealed small-size package. There is also a variety of filters available to maximize performance in specific applications.

Features

Non-contact measurement
Wider surface area measurement
Small-size sensor package
Included ambient temperature(thermistor) sensor for compensation
High sensitivity
Fast response time
Low cost

Applications

HVAC
Occupancy detection
Automotive

Specifications

Thermopile Chip

Parameter	Limit Min	Limit Typ	Limit Max	Units	Conditions
Chip Size		3.6 x 3.6		mm2
Diaphragm Size		2.6 x 2.6		mm2
Active Area		1.3 x 1.3		mm2
Internal Resistance	35	50	65	kΩ	25°C
Resistance T.C			0.12	%/°C
Responsivity	22	32	42	V/W	500K, 1 Hz
Responsivity T.C		-0.11		%/°C
Noise Voltage		30		nV rms	R.M.S., 25°C
NEP		0.94		nW/Hz½	500K, 1 Hz
Detectivity		1.38 E08		cmHz½/W	500K, 1 Hz
Time Constant		25		ms

Download

说明	English
Thermopile Application Note
ZTP-315 IR Sensor Brochure

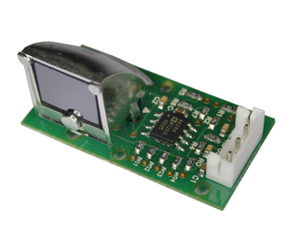

ZTP-115M - Thermopile IR Sensor

main-ZTP-115M

The ZTP-115M is a single IR module used for noncontact surface temperature measuring. It consists of a thermopile, IR sensor, signal conditioning and voltage output.

Features

Non-contact measurement
Wider surface area measurement
Small-size sensor package
Included ambient temperature - (thermistor) sensor for compensation
High sensitivity
Fast response time
Low cost
Analog output

Applications

Occupancy detection
HVAC
Appliance
Microwave oven

Specifications

Suply Voltage

Single Supply (+5V)

Supply Current

Typical 2.7 mA

Response Time

0.3 ~ 0.6 second

Range of Measuring Temperature

-40°C ~ 145°C

Operating Temperature

-20°C ~ 100°C

Storage Temperature

-20°C ~ 120°C

Thermopile Sensor

ZTP-115

Download

说明	English
Thermopile Application Note
ZTP-115M IR Module Brochure

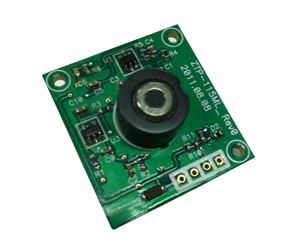

ZTP-115ML - Thermometric IR Module

main-ZTP-115ML

The ZTP-115ML infrared module is used for noncontact surface temperature monitoring. This thermopile IR module presents the temperature compensated single outputs via I2C with optics (Silicon Lens). It can also provide compatibility with the customer’s device without the need for recalibration. The ZTP-115ML uses 4-wire connections: two signals for I2C output, single power supply and ground.

The field of view of each element of ZTP-115ML is about ±5 degrees for 50% normalized output. The total size is only 30 mm X 28 mm.

Features

Single module
Digital temperature output
I²C output
Fully calibrated and compensated

Applications

Microwave oven
IR Detector for narrow FOV detection

Specifications

Supply Voltage

Single Supply (+5V)

Output mode

Temperature (I²C protocol)

Temperature Range

-20°C ~ 100°C

Operating Temperature

-20°C ~ 100°C

Storage Temperature

-20°C ~ 120°C

Thermopile Sensor

ZTP-115

Module size

30 mm x 28 mm

Download

说明	English
Thermopile Application Note
ZTP-115ML IR Module Brochure

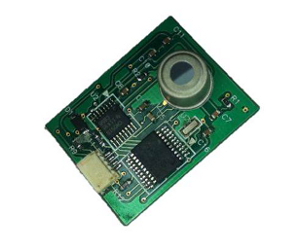

ZTP-188MA - Thermometric IR Module

main_ZTP-188MA

The ZTP-188MA 1 x 8 IR module is used for noncontact surface temperature monitoring. This thermopile IR module presents the temperature compensated 8 linear array outputs via I²C with optics (Silicon Lens). It can also provide compatibility with the customer’s device without the need for recalibration. The ZTP-188MA uses 4-wire connections: two signals for I²C output, single power supply and ground. The sensor is fully calibrated with a wide object and ambient temperature range. Lens for different field of views are available on request.

Download

Features

Digital temperature output
I²C communication protocol
Fully calibrated and compensated
1 x 8 array module
Compact size and large detection range
Low power consumption
Multi-zone detection

Applications

Air conditioners
Human body temperature detection

Specifications

Parameter	Limit Min	Limit Typ	Limit Max	Unit
Supply Voltage	4.75	5.00	5.25	V
Supply Current		4.5		mA
temperature Range	0		40	ºC
Operating Temperature	0		70	ºC
Storage Temperature	-20		100	ºC
Resolution		0.1		ºC
Output Type			Digital I²C
Baud Rate		100		kBit/sec
Address Length		7		Bit
Address		0 x 58		-
input/Output High Level	0.7 VDD			V
Iput/Output Low Level			0.3VDD	V

Download

说明	English
Thermopile Application Note
ZTP-188MA Thermometrics IR Module

ZTP-188ML - Thermometric IR Module

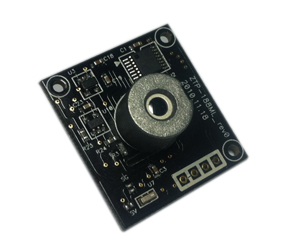

main-ZTP-188ML

The ZTP-188ML 1 x 8 IR module is used for noncontact surface temperature monitoring. This thermopile IR module presents the temperature compensated 8 linear array outputs via I2C with optics (Silicon Lens). It can also provide compatibility with the customer’s device without the need for recalibration. The ZTP-188ML uses 4-wire connections: two signals for I2C output, single power supply and ground. The sensor is fully calibrated with a wide object and ambient temperature range. Lens for different field of views are available on request.

Features

1 x 8 array module
Digital temperature output
Fully calibrated and compensated
UART output
Compact size and large detection range

Applications

Microwave oven
IR Detector for narrow FOV detection

Specifications

Supply Voltage

Single Supply (+5V)

Output mode

Temperature (UART protocol)

Temperature Range

-20°C ~ 100°C

Operating Temperature

-20°C ~ 100°C

Storage Temperature

-20°C ~ 120°C

Total FOV

25 degree

Pixel FOV

8 degree

Module size

30 mm x 28 mm

Download

说明	English
Thermopile Application Note
ZTP-188ML IR Module Brochure

ZTP-315MIH - Thermometric IR Module

main-ZTP-315MIH

This IR module is used for non-contact surface temperature measuring. The ZTP-315MIH presents the temperature compensated single outputs via voltage output with optics (glass lens for high temperature detection). It can also provide compatibility with the customer’s device without the need for recalibration. The ZTP-315MIH uses 3-wire connections: one for output signal, single power supply and ground.

The field of view is about ±9 degrees for 50% normalized output. The total size is only 33 mm X 17 mm.

Features

High temperature measurement
Single module
Ambient temperature (thermistor) sensor included for compensation
Fully calibrated and compensated
Analog output

Applications

Induction Heater/Cooker
Appliances

Specifications

Supply Voltage

Single Supply (+5V)

Supply Current

Typical 2.7 mA

Response Time

0.3 ~ 0.6 sec

Temperature Range

20°C ~ 380°C

Operating Temperature

20°C ~ +100°C

Storage Temperature

-20°C ~ 120°C

Thermopile Sensor

ZTP-315C

Download

说明	English
Thermopile Application Note
ZTP-315MIH IR Module Brochure

传感器与测量

首页	公司简介	产品展台	开发生产	资料下载	技术支持	解决方案	展会消息
代理经销	集成电路	高频微波	消费电子	工控网络	安防报警	光纤光电	汽车电子
合作交流	留言本	友情连接	热卖产品	销售网络	招聘加盟	新品介绍	联系我们
