Liquid Warning
![Condensation Sensor](condensation-sensor-wcd-2.jpg)
Condensation Sensor
The condensation sensor WCD 2 has been designed to provide a switched output signal to prevent the onset of condensation on chilled surfaces such as chilled beams.
Read more about Condensation Sensor WCD 2
Microprocessor Based

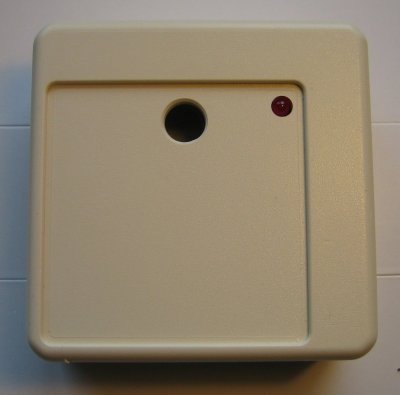

Liquid Warning Detectors WWD-series
The liquid warning detectors WWD-series is used to
sense moisture and water.
The liquid warning detectors WWD-series senses the change in conductivity when moisture or water is in contact with the sensing pins or when moisture or water is in contact with the external alarm band WST.
The sensing pins are located under the liquid warning detector base unit for direct mounting on the floor.
Read more about Liquid Warning Detectors WWD-series

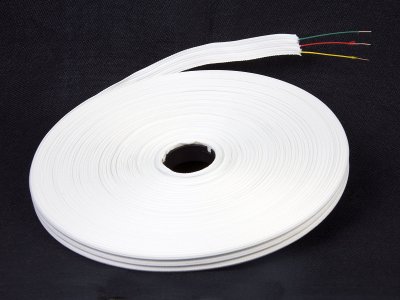

Alarm Band WST
Alarm band WST is made of texturiced stockinet-knitted polyester in which parallel uninsulated wires of soft annealed copper are woven.
Alarm band WST andicating the presence of moisture or water between the wires.
Alarm band WST can be used with liquid warning detector WWD.
|
|
|
Ventilation Control Products
(VCP) supply products for
HVAC Automation / Building Automation.
Our product range contains:
Sensors, Transmitters, Switches and Detectors
for
Temperature, Humidity, Pressure, Air Quality
(VOC), Carbon Dioxide (CO2), Carbon Monoxide
(CO), Liquid, Smoke and Weather.
Including Zone Valves, Valve Actuators, Damper Actuators, Controllers and Thermostats.
VCP products are
designed and used as field control products to
be integrated with HVAC control systems such as:
-
BAS = Building Automation System
-
BMS = Building Management System
-
BEMS = Building Energy Management System
-
BAMS = Building Automation Management Systems
-
DDC = Direct Digital Controls
-
FMS = Facility Management Systems
-
FMIS = Facility Management Information Systems
-
HVAC controls = Heating, Ventilation and Air Conditioning controllers
HVAC Sensors and Transducers
Temperature Monitoring
-
Room, Duct, Immersion, Strap-on and Outdoor temperature sensors, transmitters/transducers.
-
Designed and used to sense temperature in in heating, ventilation and air conditioning systems.
-
Sensors with direct output
Thermistors, Platina, Nickel
NTC 10K, NTC 1.8K, NTC 20K, PT1000, PT100, NI1000, PTC
sensing elements. -
Transmitters with output 0-10 Vdc or 4-20 mA, with or without LCD display.
Humidity Monitoring
-
Room, Duct and Outdoor RH transmitters/transducers and hygrostats/humidistats.
-
The humidity and temperature transmitters measures the relative humidity and temperature, designed and used to sense temperature in in heating, ventilation and air conditioning systems.
-
Output 0-10 Vdc or 4-20 mA, with or without LCD display.
Pressure Monitoring
-
Pressure switches and pressure transmitters for static, over, differential pressure and vaccum.
-
Switches, where switching pressure can easily be adjusted on a scaled adjustment knob.
-
20-200 Pa, 20-300 Pa, 30-400 Pa, 50-500 Pa, 200-1000 Pa, 500-2500 Pa, 1000-4000 Pa.
-
Transmitters/Transducers, output 0-10 Vdc or 4-20 mA, with or without LCD display.
-
0-100 Pa, 0-250 Pa, 0-500 Pa, 0-1000 Pa, 0-2500 Pa, 0-5 kPa, 0-10 kPa,
0-25 kPa, 0-50 kPa, 0-100 kPa and 0-250 kPa.
Flow Monitoring
Air Flow Paddle Switch intended to monitor air flow and non-agressive gaseous within a duct and provides a switched output on detection of either a specified air velocity or flow failure.
Air Quality (VOC) Monitoring
-
VOC = Volatile Organic Compounds.
-
Also named a Mixed Gas Sensor.
-
Used for better Indoor Climate and Energy Savings.
-
Room and Duct transmitters/transducers.
-
Output 0-10 Vdc or 4-20 mA, with or without LCD display.
Carbon Dioxide (CO2) Monitoring
-
Used for Field Controls in Green Building Applications.
-
Room and Duct transmitters/transducers.
-
Output 0-10 Vdc or 4-20 mA, with or without LCD display.
Carbon Monoxide (CO) Detection
-
CO detectors/transmitters/transducers to be used to detect toxic gas Carbon Monoxide
-
In applications such vehicle exhaust in parking structures,
(e.g. underground garages), engine repair shops, tunnels, equipment rooms, ventilation systems etc. -
Electrochemical sensor element.
-
Output 4-20 mA or 2-10 Vdc.
Liquid Detection
-
Liquid Warning Detectors and
Alarm Band for Detection of Moisture and Water -
Early detection means Early warning.
-
Avoid leak damages.
-
Detect moisture and liquid.
-
Use VCP´s detectors and alarm band to prevent or minimize water damages.
Smoke Detection
-
Duct Smoke Detectors for Ventilation Systems.
-
The primary purpose of duct smoke detection is to prevent injury, panic, and property damage by reducing the spread (recirculation) of smoke.
-
Detection of smoke is achieved by monitoring a carefully controlled infrared beam within a perforated tube which is inserted into the ductwork.
-
This method senses smoke directly within the duct, eliminating the problems associated with conventional detectors mounted in sampling boxes.
-
IR-detection (obscuration).
-
Probe lengths 300 mm and 600 mm.
Controllers
-
Zone Controllers with LCD display.
-
Full-featured CPU based controller designed for small sized cooling and heating air handling systems in residential and commercial facilities.
-
230 Vac or 24 Vac fan speed control.
-
single or 3 speed (High-Med-Low).
-
0-10 Vdc analogue and on/off outputs.
-
Cooling and heating.
Thermostats (Fan Coil)
-
Room thermostats designed for line voltage or low voltage control of valves, relays and fan motors
-
in fan coil units for commercial, industrial and residential installations.
-
Fan speed switch.
-
3 speed (HIGH-MED-LOW).
-
24 V and 220 V versions.
-
On/off,heat only or cool only, 2-pipe systems.
-
Heat-off-cool, 2-pipe systems.
-
Heat-off-cool, 4-pipe systems.
-
Setpoint knob.
-
High quality bi-metal sensor for close temperature differential.
Valves and Actuators
Designed and used for control of heat or cool water flow.
Fan coil valves (zone valves)
together with fan coil actuator
used as control device.
Fan Coil Valves
-
2-way, 3-way, 3-way with 4-ports.
-
DN10 (3/8”), DN15 (1/2”) and DN20 (¾”).
-
PN16.
-
Kvs 0.4, 0.6, 1.0, 1.6, 2.5, 3.5, 4.0 and 5.0.
-
Stroke 3.7 mm.
-
Normally Open Valves.
Fan Coil Actuators
-
Control Signal on/off or Pulse Width Modulating (PWM).
-
24 Vac/dc and 220 Vac versions.
-
Normally Open and Normally Closed versions.
-
Stroke 4.0 mm
-
Adaptors to motorize other valve brands.
-
Actuator with control signal 0-10 Vdc also available.
Damper Actuators
-
To be used for positioning of dampers,
-
Spring Return Damper Actuators and Non-Spring Return Damper Actuators.
-
Torque 2, Nm, 4 Nm, 5Nm, 8 Nm, 10 Nm, 15 Nm, 16 Nm, 24 Nm and 32 Nm.
-
Control signals on/off, 3-point, 2-10 Vdc or 4-20 mA.
Weather
Weather Sensor Shields
-
Used in outdoor installations to protect relative humidity and temperature sensor from rain and sun radiation ensuring reliable measurement data.
-
Maximum protection from solar radiation and precipitation.
-
To be assemblied on wall or on mast.
Wind Speed and Wind Speed/Direction Sensors
-
The sensors accurately measures the wind speed and direction, providing output signals compatible with most DDC controllers.
-
Intended for applications where external weather conditions influence the building control strategy, such as for the automatic closing of windows in high wind conditions.
-
To be assemblied on wall or on mast.
Weather Station Products
-
Other weather station and meteorology products on request
-
rain detectors, aerodynamic rain gauges, sunshine detectors, lighting detectors, vane anemometers, barometric measurement etc
