LNA	RF Rx Gain	Mixer	Rx IF	Set-top
			oscillator
	PA	RF Tx Gain	Mixer	Tx IF
	Required Functions & HP Products

HP supplies:
RF and IF components in the block down-converter

MMDS LNA

top

Detects and amplifiers downstream signal
[2500 -2674 MHz]

ATF-36163

MMDS Receive Gain

top

amplifiers downstream signal
[2500 -2674 MHz]

MGA-81563

MMDS Mixer

top

converts downstream signal from 2.5 GHz to 200 MHz or converts upstream signal from 200 MHz to 2.5 GHz HSMS-2802x
HSMS-2812

MMDS Receive IF

top

amplifiers IF signal
[222 - 396 MHz]

AT-42086, MSA-1105

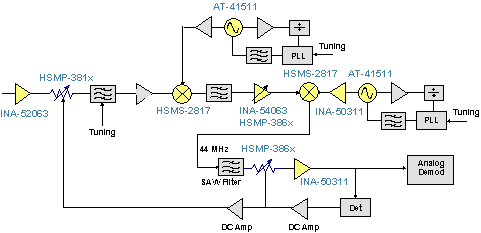

MMDS Analog Set-top

top

Creates signal to drive TV
[TV IF 222-396 MHz, Data IF 408.0625 - 411.8125 MHz]

HSMS-2817
HSMP-381x, HSMP-386x
AT-41511
INA-50311, INA-52063, INA-54063

MMDS Oscillator

top

provides signal for downconversion / upconversion
[2278 MHz, with output buffer]

AT-415 (oscillator and buffer)
INA-31063 (buffer amplifier)

MMDS Power Amplifier

top

amplifiers upstream signal
[2686 - 2890 MHz]

MGA-83563, MGA-82563

MMDS Transmit Gain

top

amplifiers upstream signal
[2686 - 2890 MHz]

MGA-81563

MMDS Transmit IF

top

amplifiers IF signal
[408 - 412 MHz]

INA-50311
