Digital radio receiver modules designed for medium data rate
point-to-point communication systems operating at 23 GHz.
| part number |
frequency |
IF |
connectors |
data sheet |
| DRR1-2311 |
21.2 - 23.6 GHz |
630 MHz |
SMA |
PDF |
| DRR1-2312 |
21.2 - 23.6 GHz |
630 MHz |
WR-42 |
PDF |
| DRR1-2311 |
21.2-23.6 GHz |
1260 MHz |
SMA |
PDF |
| DRR1-2312 |
21.2-23.6 GHz |
1260 MHz |
WR-42 |
PDF |

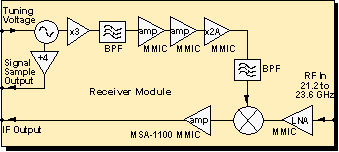

excellent phase noise from silicon bipolar S/C band VCO
easily phase-locked to a frequency reference from low frequency VCO output tap
+3 dBm output power, ideal for 2 and 4 level FSK modulation
PHEMT front end for low NF
waveguide and SMA connector options
630 or 1260 MHz IF frequency options

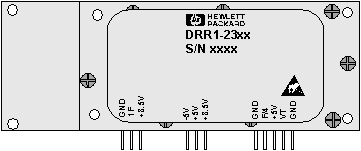

case dimensions:
3.50 x 1.25 x 0.40 inches |
 |
Performance Parameters
| |
DRR1-23xx |
| specification |
units |
min |
typ |
max |
| RF tuning range | GHz |
21.2 | | 23.6 |
| IF Frequency | MHz |
630 or 1260 |
| IF Bandwidth | MHz |
+20 | | |
| LO Frequency | GHz |
20.57
or 19.94 | | 22.97
or22.34 |
| Gain | dB |
18 | | 26 |
| Gain Flatness over 300 MHz | dB |
| | +1 |
| Noise Figure | dB |
| 4.5 | 5.5 |
| Power Input at P 1dB | dBm |
-22 | -17 | |
| LO Leakage at I | dBm |
| | -15 |
| LO Leakage at R | dBm |
| | -15 |
| Return Loss RF Port | dB |
12 | | |
| Return Loss IF Port | dB |
14 | | |
| Image Rejection | dB |
12 | 15 | |
| Sample Out Frequency | MHz |
857
or 831 | | 957
or931 |
| Sample Out Power | dBm |
-10 | | 0 |
| Spurious Output | dc |
| 0 | -60 |
| Phase Noise at 100 kHz | dBc/Hz |
| -85 | -82 |
| Tuning Voltage | V |
1 | | 12 |
| Input Capacitance, nom. | pF |
| 1000 | |
| LO Tuning Sensitivity | MHz/V |
| 300 | 500 |
| Sensitivity variation | |
| 1.5:1 | 2.0:1 |
DC Circuit Power
+8.5 Volts
+5 Volts
-5 Volts |
mA
mA
mA |
| |
300
400
30 |
| Max Power at Input / No Damage | dBm |
| | 10 |
| Operating Temperature Range | C |
-30 | | 70 |
| Humidity Non Condensing | % |
| 85 | |
| Humidity Condensing | % |
| 95 | |
|
PDF |
FAX |
