Digital radio receiver modules designed for medium data rate
point-to-point communication systems operating at 38 GHz.
| part number |
frequency |
IF |
connectors |
data sheet |
| DRR1-3813 |
37 - 40 GHz |
630 MHz |
WR-28 |
PDF |
| DRR1-3823 |
37 - 40 GHz |
1260 MHz |
WR-28 |
PDF |

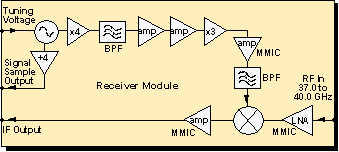

excellent phase noise from silicon bipolar S/C band VCO
easily phase-locked to a frequency reference from low frequency VCO output tap
ideal for 2 and 4 level FSK modulation
PHEMT front end for low NF
630 or 1260 MHz IF frequency options

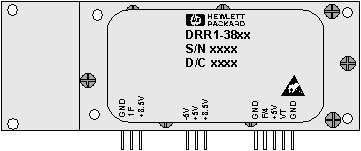

case dimensions:
3.50 x 1.25 x 0.40 inches |
 |
Performance Parameters
| |
DRR1-38xx |
| specification |
units |
min |
typ |
max |
Extended Range
39.5 - 40.0 |
| RF tuning range | GHz |
37 | | 39.5 | 40 |
| IF Frequency | MHz |
630 or 1260 |
| IF Bandwidth | MHz |
+20 | | | |
| LO Frequency | GHz |
RF - IF |
| Gain | dB |
18 | | 27 | 16 min |
| Gain Flatness over 300 MHz | dB |
| | +1 | +1.5 |
| Noise Figure | dB |
| 7.5 | 9 | 9.5 max |
| Power Input at P 1dB | dBm |
-20 | -17 | | |
| LO Leakage at I | dBm |
| | -15 | |
| LO Leakage at R | dBm |
| | -15 | |
| Return Loss RF Port | dB |
8 | 10 | | 5 min |
| Return Loss IF Port | dB |
14 | | | |
| Image Rejection | dB |
10 | 13 | | |
| Sample Out Frequency | MHz |
1010 | | 1080 | 1094 |
| Sample Out Power | dBm |
-10 | | 0 | |
| Spurious Output | dBc |
| | -60 | |
| Phase Noise at 100 kHz | dBc/Hz |
| -83 | -80 | |
| Tuning Voltage | V |
1 | | 12 | 15 max |
| Input Capacitance, nom. | pF |
| 1000 | | |
| LO Tuning Sensitivity | MHz/V |
| 400 | 500 | |
| Sensitivity variation | |
| 1.5:1 | | |
DC Circuit Power
+8.5 Volts
+5 Volts
-5 Volts |
mA
mA
mA |
|
270
470
20 |
350
650
30 | |
| Max Power at Input / No Damage | dBm |
| | 7 | |
| Operating Temperature Range | C |
-30 | | 70 | |
| Humidity Non Condensing | % |
| 85 | | |
| Humidity Condensing | % |
| 95 | | |
|
PDF |
FAX |
