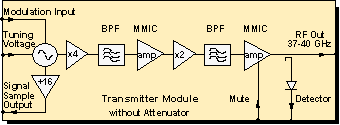

DRT1-3813 |

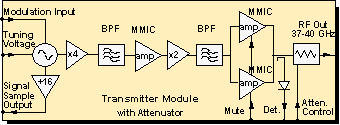

DRT1-3823 |
| specification |
units |
min |
typ |
max |
min |
typ |
max |
| RF tuning range | GHz |
37 | | 40 |
37 | | 40 |
| RF power Output | dBm |
18 | 19 | |
18 | 19 | |
| Sample Out Frequency | MHz |
289 | | 313 |
289 | | 313 |
| Sample Out Power | dBm |
-10 | | 0 |
-10 | | 0 |
| Detected Out | V |
0.4 | | 2 |
0.4 | | 2 |
| Harmonics and sub-Harmonics from 2.65 to 55 GHz from carrier | dBc |
| -30 | |
| -30 | |
Spurious Output
from 2.65 to 55 GHz
at Fo + 1.0 GHz
at prescalor output frequency |
dBc
dBc
dBc |
| |
-30
-50
-30 |
| |
-30
-50
-30 |
| Phase Noise at 100 kHz | dBc |
| -82 | -80 |
| -82 | -80 |
| Tuning Voltage | V |
1 | | 16 |
1 | | 16 |
| Input Capacitance, nom. | pF |
| 27 | |
| 27 | |
| Main Tuning Sensitivity | MHz/V |
200 | | 400 |
200 | | 400 |
| Main Tuning Sensitivity variation | |
| 1.5:1 | 2.0:1 |
| 1.5:1 | 2.0:1 |
| Modulation Bandwidth | MHz |
| 20 | |
| 20 | |
| Modulation Sensitivity | MHz/V |
10 | | 35 |
10 | | 35 |
| Modulation Sensitivity variation | % |
| 20 | |
| 20 | |
DC Circuit Power
+10 Volts
+5 Volts
-5 Volts |
mA
mA
mA |
| |
175
600
50 |
| |
175
975
50 |
| Frequency Pushng on +10V line based on + 0.2V variation | MHz/V |
| 40 | 50 |
| 40 | 50 |
| VSWR at full Power Output | |
| 2.5:1 | |
| 2.5:1 | |
| Mute Control | dBc |
| -50 | |
| -50 | |
| Mute Control Range | V |
0 | | 5 |
0 | | 5 |
| Attenuator Range | dB |
| N/A | |
30 | | |
| Attenuator Control Voltage | V |
| N/A | |
0 | | 5 |
| RF Output Dynamic Range | dB |
| N/A | |
30 | | |
| Operating Temperature Range | C |
-30 | | 70 |
-30 | | 70 |
| Humidity Non Condensing | % |
| 85 | |
| 85 | |
| Humidity Condensing | % |
| 95 | |
| 95 | |
